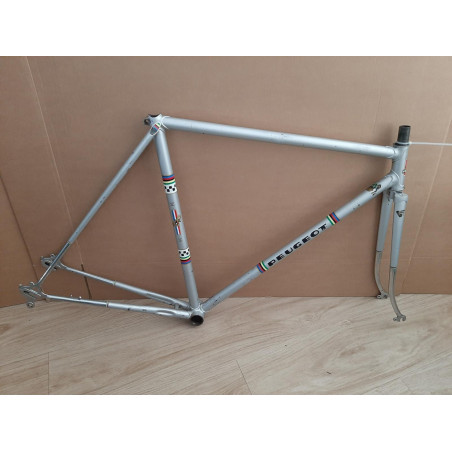

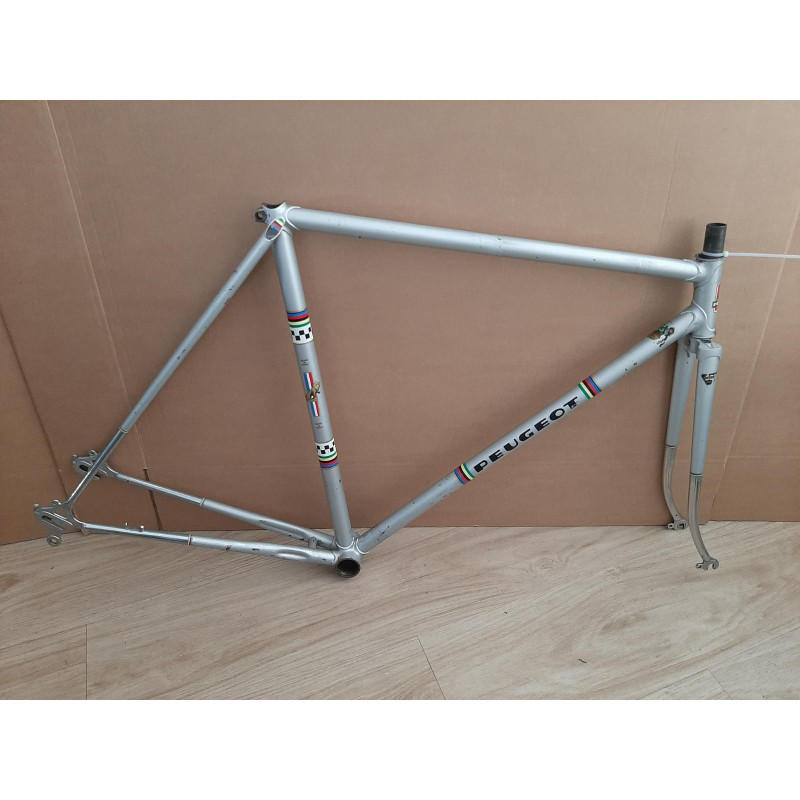

A cornerstone of classic French cycle racing, this Peugeot PX10 / PY10 fuselage provides a premium platform for vintage restorations and period-correct builds. Constructed entirely from double-butted Reynolds 531 steel tubing, this chassis offers the classic compliance, dampening, and lightweight performance that defined professional racing throughout the golden era of European cycling.
Restoration Technical Notes
To ensure a flawless mechanical build, please note the technical specifics of this frame set. The included fork is non-original, with a steerer tube that measures approximately 5mm longer than the frame head tube. Achieving correct headset preload and eliminating play requires adding one or two washers during assembly. Additionally, the existing finish is prime for restoration, with a full repainting recommended to return this iconic machine to its former glory. The high-resolution product photographs constitute a fundamental component of this technical description.
Technical Specifications
- Size: 56
- Thread (bottom bracket): 35x100 "French"
- Thread (fork): 25X100
- Total weight: 2810g
- Seat tube (bottom bracket center to top of tube): 56 cm
- Top tube (center to center): 57.5 cm
- Rear dropout spacing: 125.2 mm
Compatibility & Period Components
To preserve the historical accuracy of your project, this frame utilizes classic French-threaded standards. For a historically accurate cockpit setup, consider pairing this frame with a vintage steel touring bike handlebar. If you are comparing geometry sizes or require a slightly different fitment, we also have alternative French steel frames in stock, such as this larger Peugeot PY10 Reynolds 531 Frame, which features similar high-end tubing and construction standards.
FAQ
What headset is compatible with this Peugeot frame?
This frame features French thread standards. The fork has a 25X100 thread, meaning you will need a classic French-threaded headset. Ensure you add one or two washers to compensate for the 5mm extra steerer tube length.
What is the bottom bracket thread type?
The bottom bracket shell uses a 35x100 'French' thread. Standard British (BSA) or Italian cups will not thread into this bottom bracket shell.
Why does the fork need washers?
The included fork is non-original, and its steerer tube is approximately 5mm longer than the frame's head tube. Washers must be placed under the headset locknut to ensure correct, secure assembly.
Are there any structural cracks or frame damage?
No structural cracks, major rust, or frame bends are present. The frame is structurally sound, though the paintwork needs to be fully redone due to cosmetic wear.
