Classic French Engineering: Peugeot PR10 Reynolds 531
This authentic 1970s French road frame is constructed with three main tubes of high-tensile Reynolds 531 steel, offering the classic compliance and responsiveness sought after by retro-cycling purists. Sized at 58 cm (seat tube, center-to-top) by 57 cm (top tube, center-to-center), this frameset is designed to accommodate traditional 700c wheelsets. It features classic French standards, including a 35x100 bottom bracket shell and a 25x100 threaded steer tube, making it an excellent platform for a period-correct build.
Structural Sizing and Compatibility

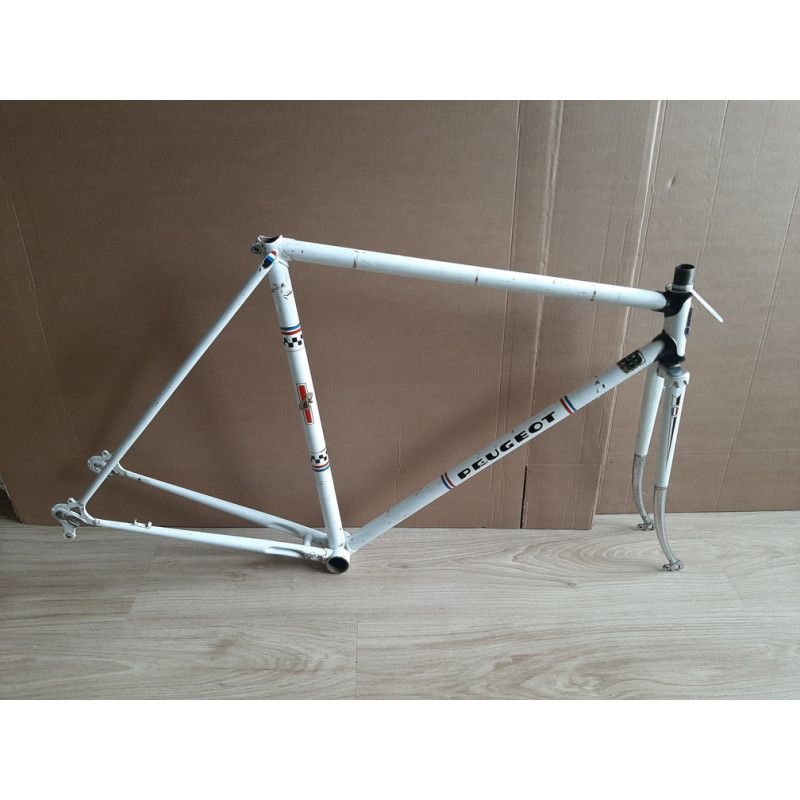

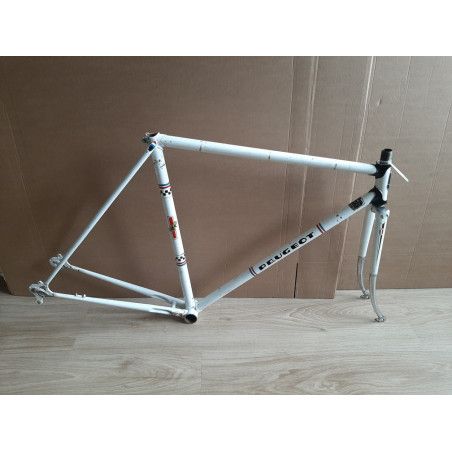

This chassis weighs 3145g (including the matching fork) and is configured with a 122 mm rear dropout spacing, matching vintage 5-speed or 6-speed hubs of the era. The detailed photographs of this pre-owned frame are part of the description, allowing you to visually inspect its authentic cosmetic state, decals, and original paint patina before purchase.
For those undertaking a complete French restoration project, this frameset pairs exceptionally well with classic rolling stock such as these Mavic 700c Tubular Rims. If you require a slightly different sizing or tubing configuration, you may also want to evaluate the legendary Peugeot PX10 PY10 Reynolds 531 Frame from our curated vintage collection.
Technical Specifications
- Size: 58
- Thread (bottom bracket): 35x100 "French"
- Thread (fork): 25X100
- Seat Tube (Center-to-Top): 58 cm
- Top Tube (Center-to-Center): 57 cm
- Rear Dropout Spacing: 122 mm
- Total Weight: 3145 g
FAQ
What is the bottom bracket thread type on this Peugeot PR10 frame?
This frame features classic French bottom bracket threading measuring 35x100, which requires a compatible French-threaded bottom bracket cup set.
What is the rear hub spacing measurement for this frameset?
The rear dropout spacing is 122 mm, which is standard for vintage 5-speed and 6-speed hubs from the 1970s and early 1980s.
Which tubes of this frameset are made of Reynolds 531 steel?
As a classic Peugeot PR10 model, it features the three main tubes constructed from high-performance Reynolds 531 steel tubing.
