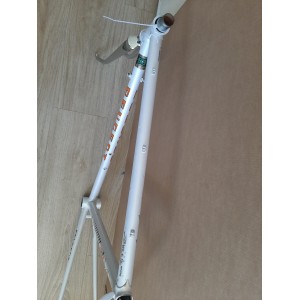

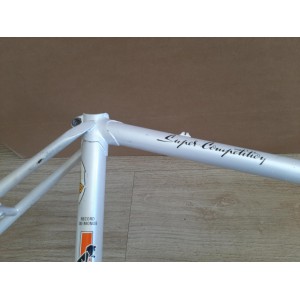

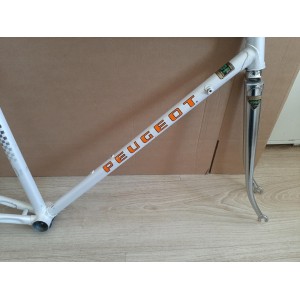

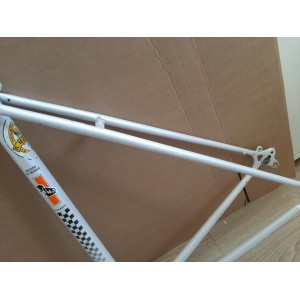

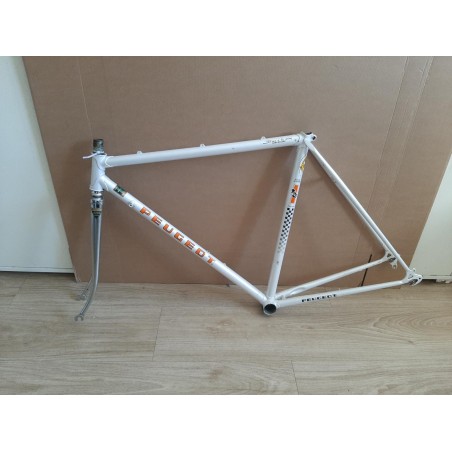

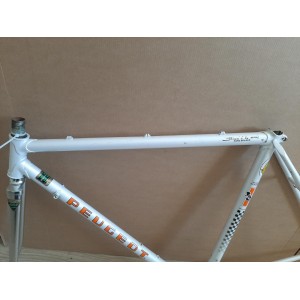

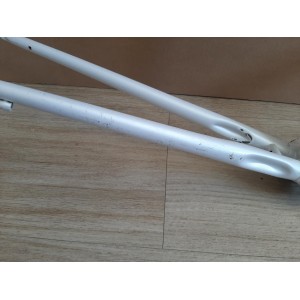

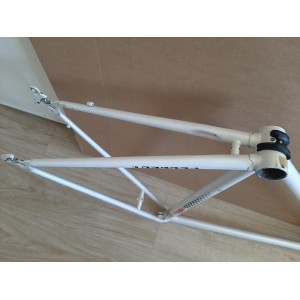

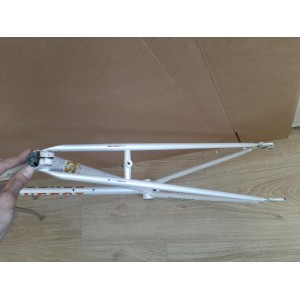

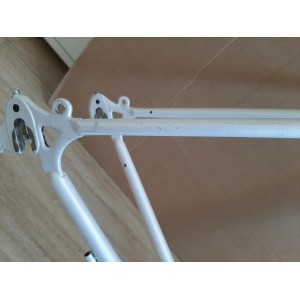

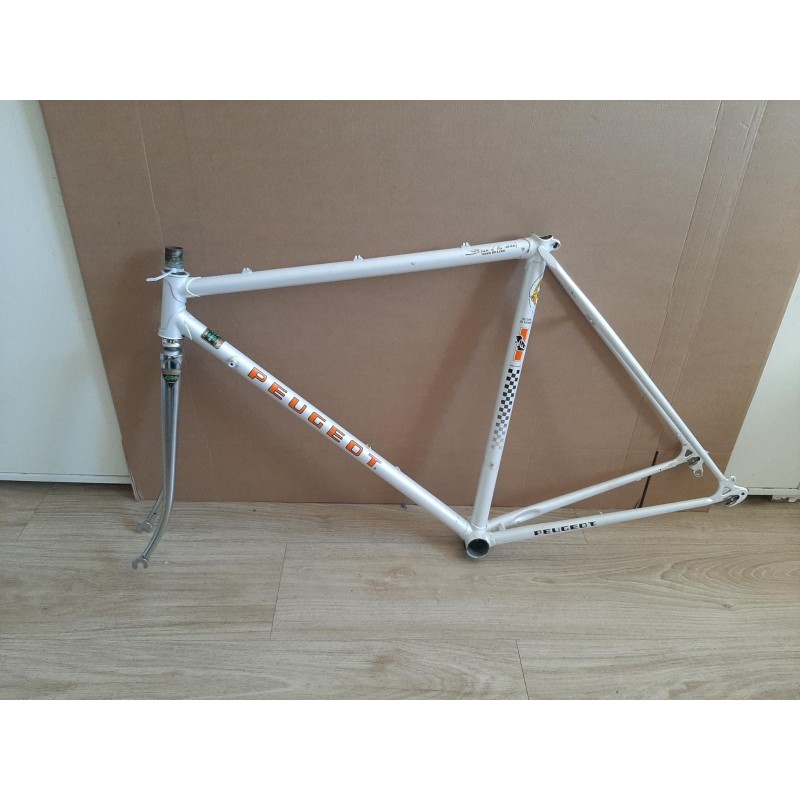

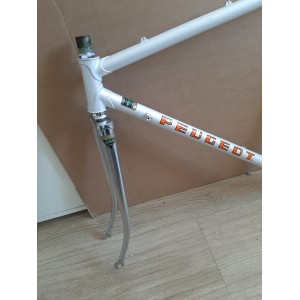

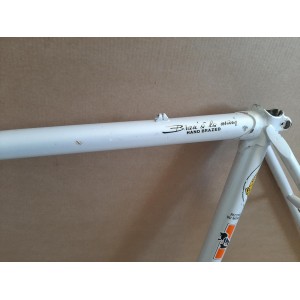

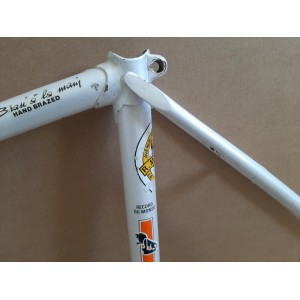

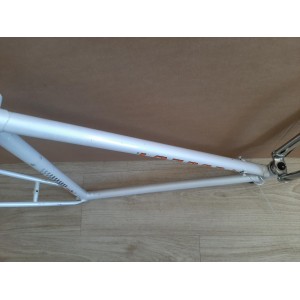

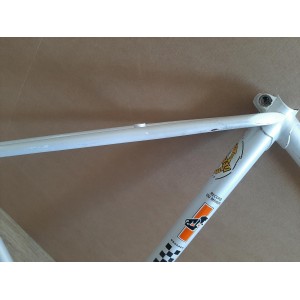

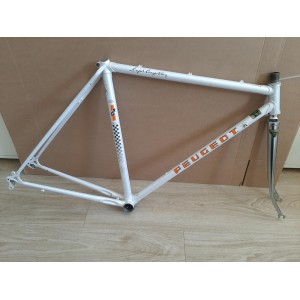

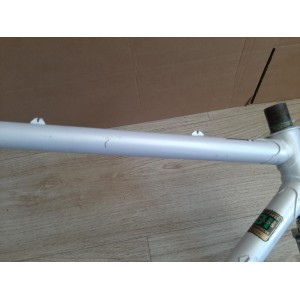

This second-hand French-manufactured Peugeot PV10 frameset represents a superb technical foundation for lightweight retro racing builds. Built with legendary Reynolds 531 steel tubes, this chassis offers the classic compliance and mechanical response sought after by collectors and vintage restoration enthusiasts. This product is sold in used condition with minor paint blemishes and cosmetic signs of use from previous riding and storage; please note that the detailed high-resolution photos are part of the description.
Technical Features & Frame Geometry

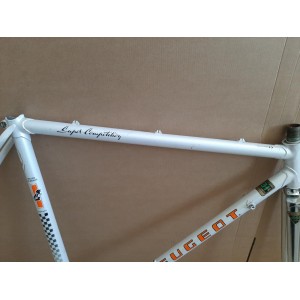

The frame is constructed using premium double-butted Steel tubing, ensuring high fatigue resistance and structural integrity. Key dimensions include a 52 cm seat tube (measured center of bottom bracket to top of the seat tube) and a 53.5 cm top tube (measured center to center). The rear dropouts are spaced at 127.2 mm, allowing compatibility with vintage 5, 6, or early 7-speed freewheel hubs. To ensure a period-correct rebuild, you can pair this frame with a vintage high-flange hubset like the Mavic 500 550 Vintage Front Hub.
Technical Specifications
- Matter: Steel
- Size: 52

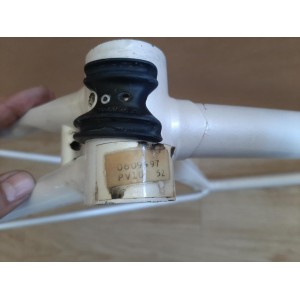

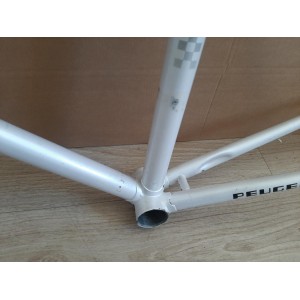

- Thread (bottom bracket): 35x100 " Swiss"
- Pays d'origine: FRANCE

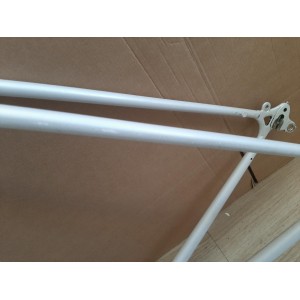

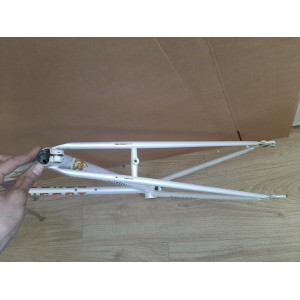

- Rear Spacing: 127.2 mm
- Weight: 2720 g (Frame and Fork combined)

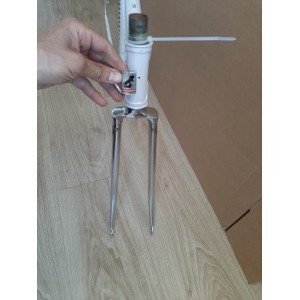

- Fork Thread: French standard
Restoration Compatibility Notes

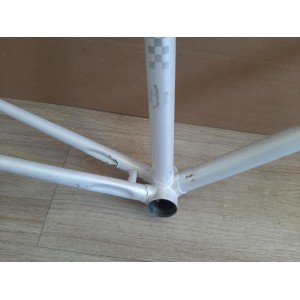

With its specific 35x100 mm Swiss threaded bottom bracket shell and French fork threading, this Peugeot PV10 requires matching vintage components. If you are planning a larger frame build, you can also compare its geometry with the Peugeot PS10 Reynolds 531 Frame or check our inventory for matching period-correct parts to complete your project.
FAQ
What bottom bracket thread standard does this Peugeot PV10 frame use?
This frame is built with a Swiss bottom bracket thread standard, measuring 35x100 mm.
What is the rear dropout spacing of this vintage frame?
The rear dropouts feature a spacing of 127.2 mm, suitable for vintage 5, 6, or narrow 7-speed wheel hubs.
What are the exact tube dimensions of this frameset?
The frame has a 52 cm seat tube (bottom bracket center to top) and a 53.5 cm top tube (center to center).
What material is this Peugeot PV10 frame made of?
The frame is constructed from premium Reynolds 531 steel tubing, manufactured in France.
