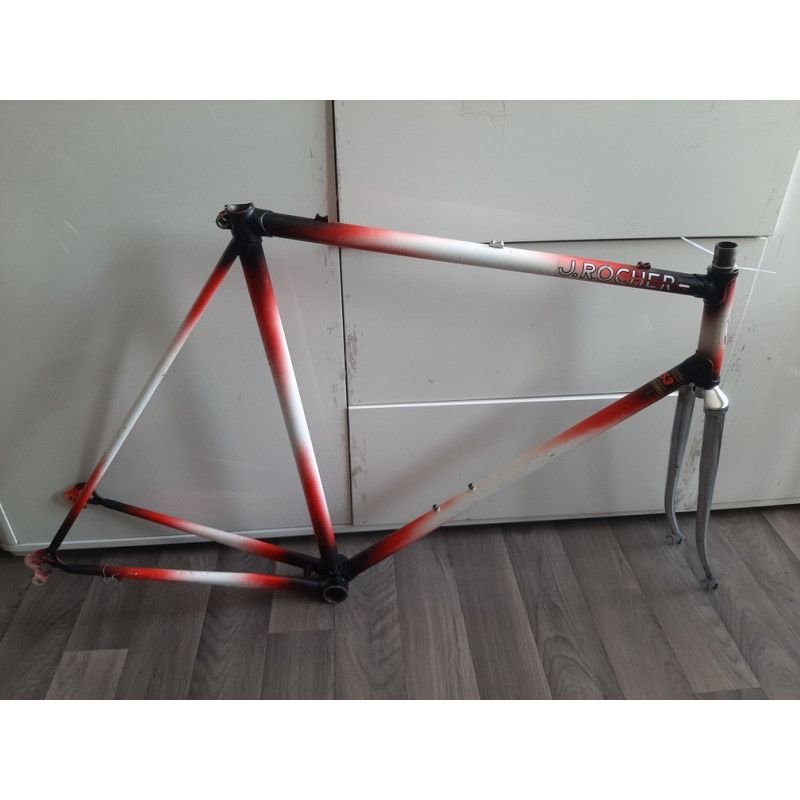

J. Rocher Reynolds 453 vintage steel frame 60cm profile view
  • J. Rocher Reynolds 453 vintage steel frame 60cm profile view
  • Reynolds 453 tubing decal on hand-crafted J. Rocher frame
  • Bottom bracket shell detail J. Rocher vintage bicycle frame
  • Rear dropouts and spacing measurement on J. Rocher frame
  • Seat lug and top tube cluster detail J. Rocher frame
  • Front fork crown and head tube lugs close-up
  • Reynolds 453 steel frame tubing signature engraving
  • Rear brake bridge and stays on J. Rocher road frame
  • Top tube measurement of 58cm center to center
  • Seat tube measurement of 60cm center to top
  • Front dropout spacing measurement 98.8mm
  • Rear dropout spacing measurement 128.6mm
  • Overall drive side view J. Rocher vintage road frame
  • Non-drive side view J. Rocher Reynolds 453 frame
  • Lug detailing on headtube J. Rocher classic frame
  • Bottom bracket threading detail J. Rocher frame
  • Fork steering tube and threading close-up view
  • Seatpost insertion area on J. Rocher vintage frame
  • Paint finish and patina detail on Reynolds 453 steel
  • Chainstay clearance and rear bridge view
  • Underneath bottom bracket view showing routing guides
  • Down tube shifter boss details on J. Rocher frame
  • Fork blade profile view J. Rocher Reynolds 453
  • Scale verification of 3045g weight for J. Rocher frame

J. Rocher Handcrafted Frame Reynolds 453 3045g 60×58 98.8/128.6mm French Thread

J.ROCHER
This hand-built steel chassis, engineered by artisan frame builder J. Rocher, features legendary Reynolds 453 tubing. Weighing 3045g with 60×58cm dimensions, it is optimized for high-performance builds. The photos are part of the description.
€83.00
VAT included
Quantity
Last items in stock
1 Item

Description

This technical steel frame is a prime example of French artisan frame building, constructed by J. Rocher with lightweight and resilient Reynolds 453 steel tubing. Offering an excellent balance between rigidity and compliance, this 60cm chassis is perfect for serious collectors and restorers looking to assemble a period-correct road machine.

Artisanal Frame Engineering & Vintage Dimensions

Built with precision lugs and carefully selected tube profiles, this frame provides the classic mechanical feedback and road-damping properties that defined high-quality steel builds of its era. With a weight of 3045g, it serves as a robust yet competitive foundation for custom assemblies. The rear spacing of 128.6mm allows for retro-multi-speed hubs, while the 98.8mm front spacing accommodates standard vintage fork setups.

For those seeking alternative vintage steel geometries, you can also view our Lejeune Full Reynolds 531 frame or explore the classic Peugeot PX10 PY10 Reynolds 531 frame in our collection.

Technical Specifications

  • Frame Material: Reynolds 453 Steel
  • Weight: 3045g (including fork where pictured)
  • Seat Tube (a): 60 cm (bottom bracket center to top of seat tube)
  • Top Tube (b): 58 cm (center to center)
  • Front Spacing: 98.8 mm
  • Rear Spacing: 128.6 mm
  • Size: 60

Condition Profile

This is a pre-owned vintage item. Cosmetic wear, paint chips, and minor surface oxidation typical of storage and age may be present. Please review the gallery closely, as the photos are part of the description.


FAQ

What is the spacing on the rear dropouts of this frame?

The rear dropout spacing is 128.6mm, making it compatible with vintage multi-speed rear hubs.

What seat tube size is this J. Rocher frame?

The seat tube is 60cm, measured from the center of the bottom bracket to the top of the tube.

Are the fork and frame both made of Reynolds 453 steel?

Yes, this artisanal set is constructed using high-quality Reynolds 453 steel tubing, weighing a total of 3045g.
